Implement co-hosting

This doc will introduce how to implement the co-hosting feature in the live streaming scenario.

Prerequisites

Before you begin, make sure you complete the following:

• Complete SDK integration by referring to Quick Start doc.
• Download the demo that comes with this doc.

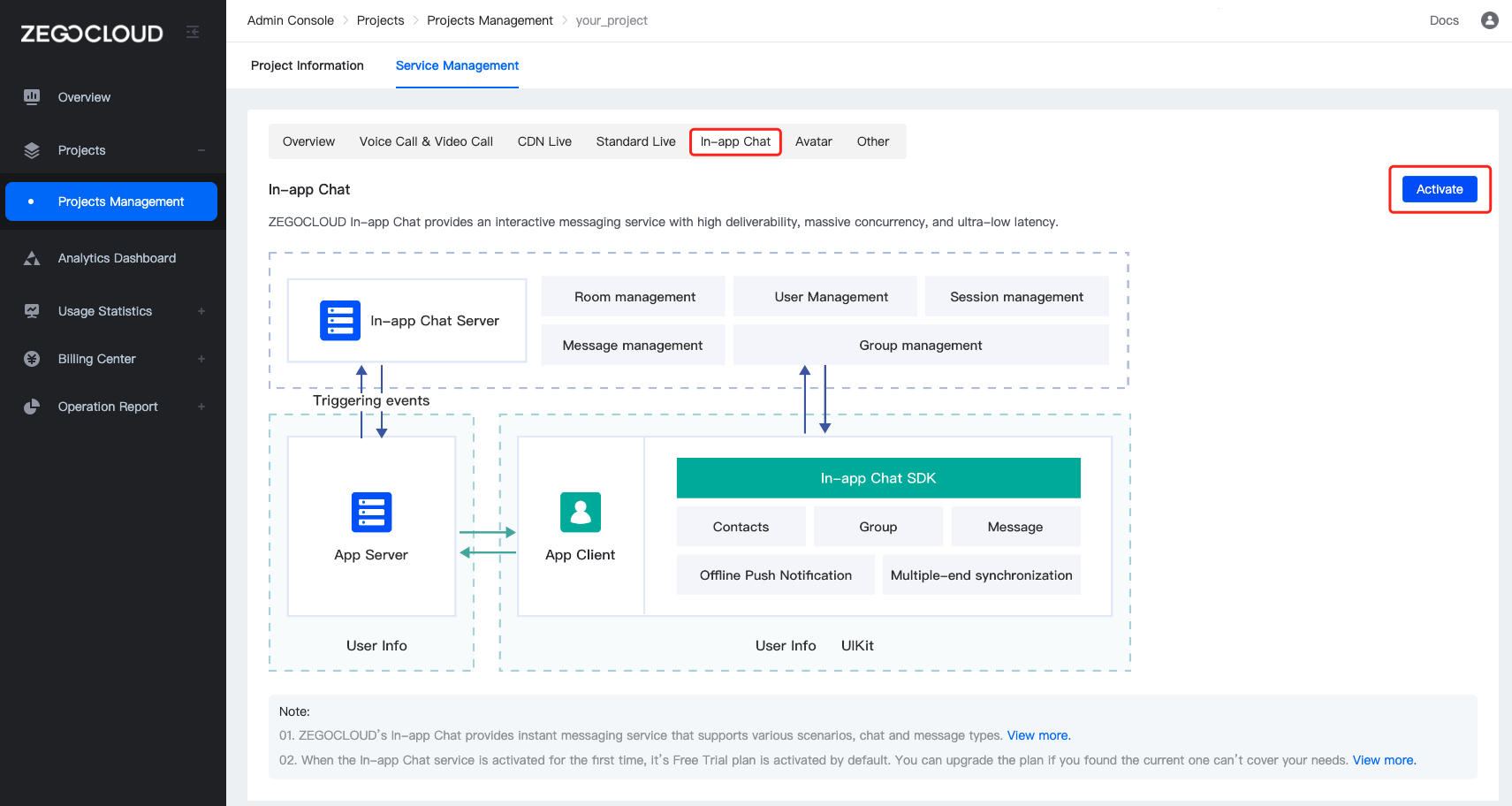

• Activate the In-app Chat service.


Preview the effect

You can achieve the following effect with the demo provided in this doc:

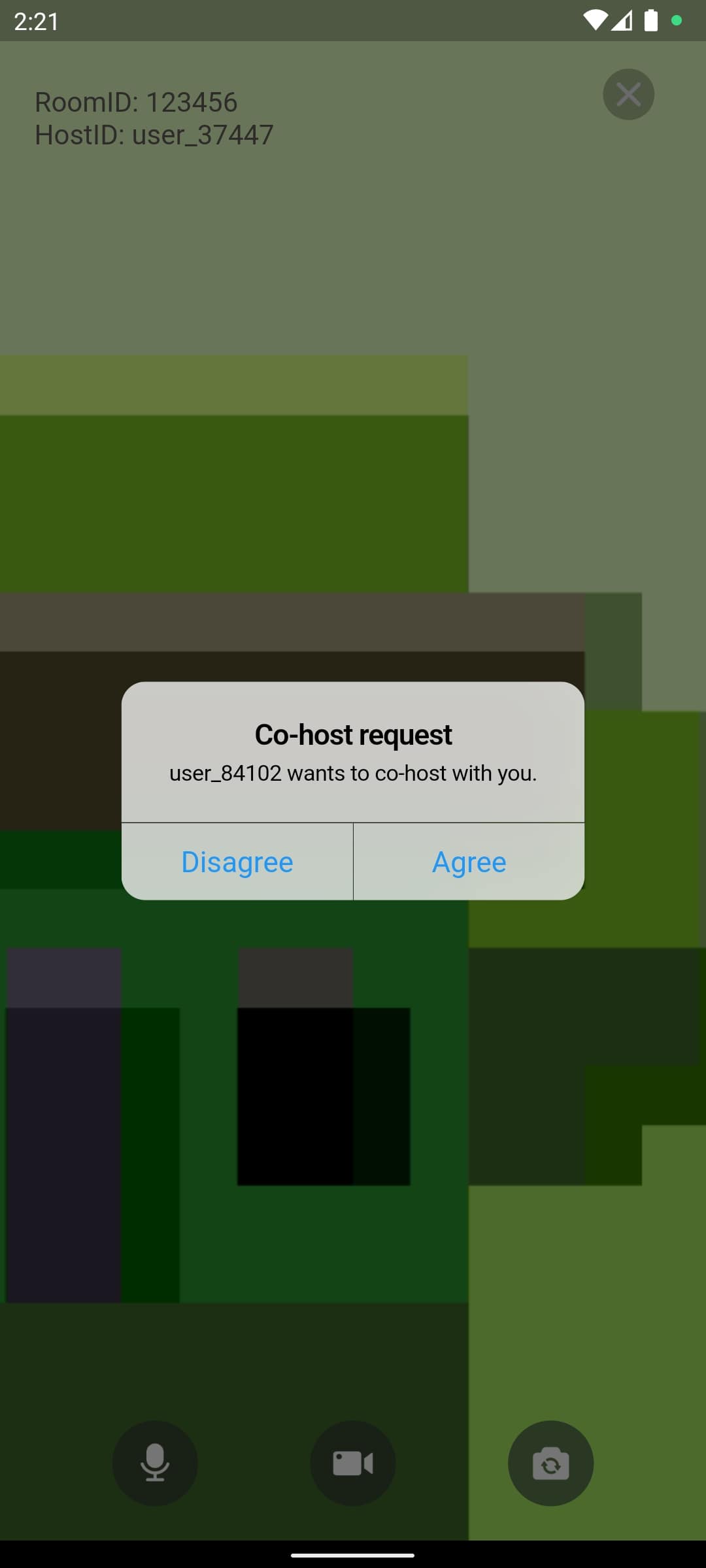

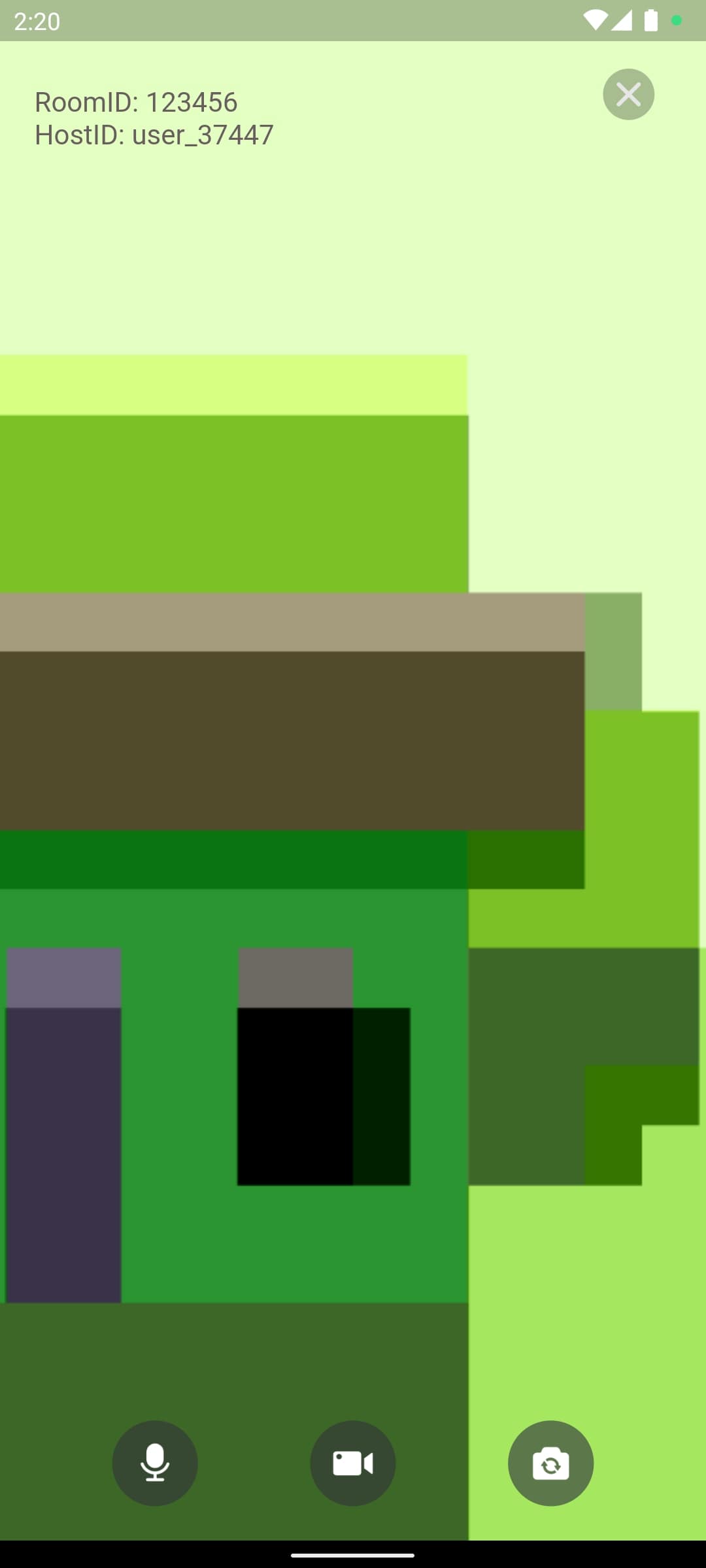

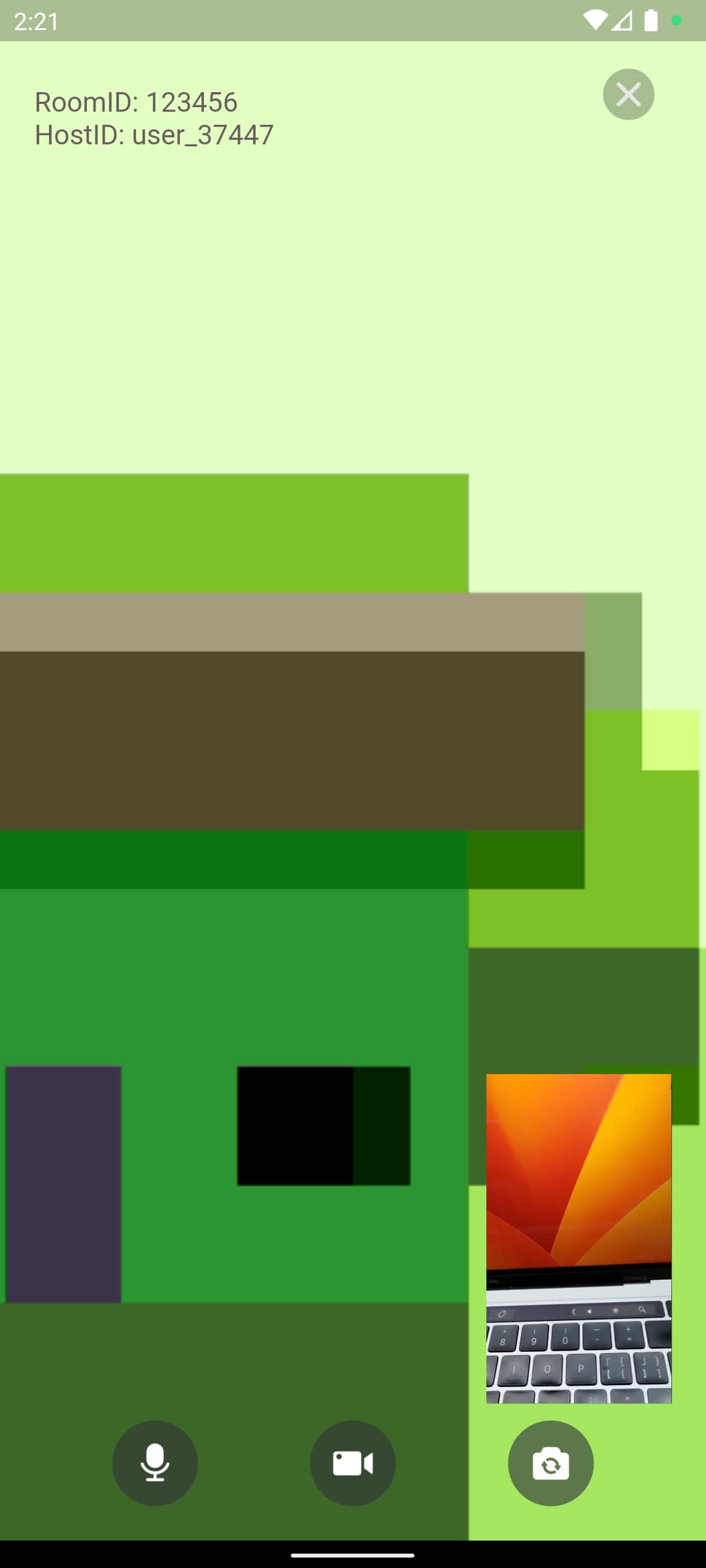

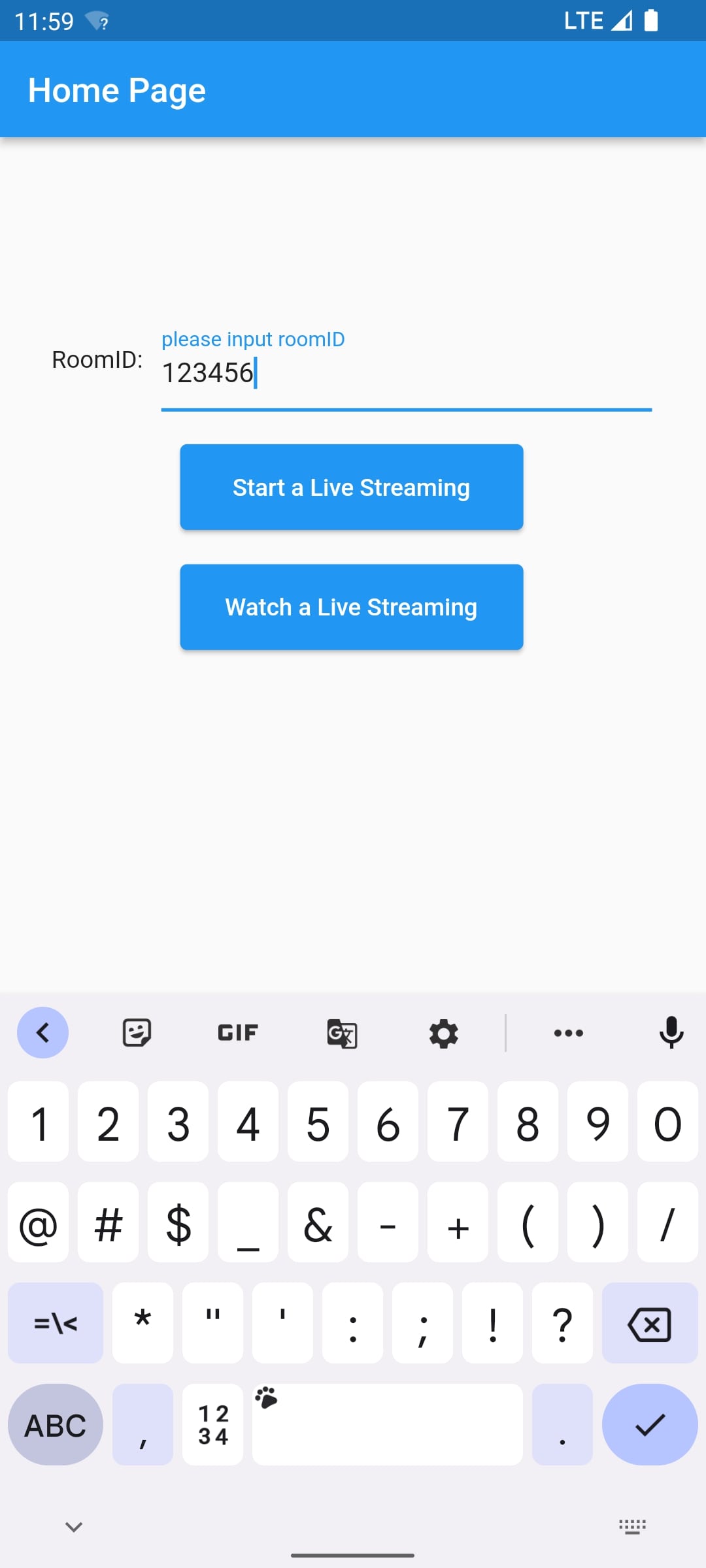

Homepage	Live stream page	Receive co-hosting request	Start co-hosting

Understand the tech

1. What is signaling?

The process of co-hosting implemented based on signaling, signaling is a protocol or message to manage communication and connections in networks. ZEGOCLOUD packages all signaling capabilities into a SDK, providing you with a readily available real-time signaling API.

2. How to send & receive signaling messages through the ZIM SDK interface

The ZIM SDK provides rich functionality for sending and receiving messages, see Send & Receive messages (signaling). And here, you will need to use the customizable signaling message: ZIMCommandMessage

Complete demo code for this section can be found at ZIMService.swift.

(1) Send signals (ZIMCommandMessage) in the room by calling sendMessage with the following:

let bytes = protocolStr.data(using: .utf8)!
let commandMessage = ZIMCommandMessage(message: bytes)
zim?.sendMessage(commandMessage, toConversationID: roomID, conversationType: .room, config: ZIMMessageSendConfig(), notification: nil, callback: { msg, error in

    // ...
    callback?(Int64(error.code.rawValue), error.message)
})

(2) After sending, other users in the room will receive the signal from the receiveRoomMessage callback. You can listen to this callback by following below:

extension ZIMService: ZIMEventHandler {
    // ...
    func zim(_ zim: ZIM, receiveRoomMessage messageList: [ZIMMessage], fromRoomID: String) {
        for message in messageList {
            if message.type == .command {
                let commandMessage = message as! ZIMCommandMessage
                let customSignalingJson = String(data: commandMessage.message, encoding: .utf8)!
                //...
             } else {
                 // ..
             }
         }
    }
    // ...
}

3. How to customize business signals

Complete demo code for this section can be found at ZIMService+RoomRequest.swift

JSON signal encoding

Since a simple String itself is difficult to express complex information, signals can be encapsulated in JSON format, making it more convenient for you to organize the protocol content of the signals.

Taking the simplest JSON signal as an example: {"room_request_type": 10000}, in such a JSON signal, you can use the room_request_type field to express different signal types, such as:

• Sending a co-hosting request: {"room_request_type": 10000}
• Canceling a co-hosting request: {"room_request_type": 10001}
• Rejecting a co-hosting request: {"room_request_type": 10002}
• Accepting a co-hosting request: {"room_request_type": 10003}

In addition, you can also extend other common fields for signals, such as senderID and receiverID, such as:

extension ZIMService {

    func sendRoomRequest(_ receiverID: String, extendedData: String, callback: RoomRequestCallback?){
        // ...
    }
}

public class RoomRequest: NSObject, Codable {
    public var requestID : String
    public var actionType: RoomRequestAction
    public var senderID: String
    public var receiverID: String
    public var extendedData: String

    init(requestID: String = "", actionType: RoomRequestAction, senderID: String, receiverID: String, extendedData: String = "") {
        self.requestID = requestID
        self.actionType = actionType
        self.senderID = senderID
        self.receiverID = receiverID
        self.extendedData = extendedData
    }

    public func jsonString() -> String? {
        let jsonObject: [String: Any] = ["action_type" : actionType.rawValue, "sender_id": senderID, "receiver_id": receiverID, "request_id": requestID, "extended_data": extendedData]
        return jsonObject.jsonString
    }
}

JSON signal decoding

And users who receive signals can process specific business logic based on the fields in it, such as:

extension LiveStreamingViewController: ZIMServiceDelegate {
    func onInComingRoomRequestReceived(request: RoomRequest) {
        showReaDot()
    }

    func onInComingRoomRequestCancelled(request: RoomRequest) {
        showReaDot()
    }

    func onOutgoingRoomRequestAccepted(request: RoomRequest) {
        onReceiveAcceptCoHostApply()
    }

    func onOutgoingRoomRequestRejected(request: RoomRequest) {
        onReceiveRefuseCoHostApply()
    }
}

Further extending signals

Based on this pattern, when you need to do any protocol extensions in your business, you only need to extend the type field of the signal to easily implement new business logic, such as:

• Muting audience: After receiving the corresponding signal, the UI blocks the user from sending live bullet messages.
• Sending virtual gifts: After receiving the signal, show the gift special effects.
• Removing audience: After receiving the signal, prompt the audience that they have been removed and exit the room.

Friendly reminder: After reading the following text and further understanding the implementation of co-hosting signals, you will be able to easily extend your live streaming business signals.

sequenceDiagram
    participant Alice
    participant appServer as App Server
    participant server as ZEGOCLOUD Server
    participant sdk as SDK
    participant Bob

    Alice  ->> appServer  : Send co-hosting request
    appServer   ->> appServer  : Process your own business logic
    appServer   ->> server: Alice's co-hosting request
    server ->> sdk  : Alice's co-hosting request
    sdk   ->> Bob   : Alice's co-hosting request


    Note over Alice, Bob: ...

Implementation

Integrate and start to use the ZIM SDK

If you have not used the ZIM SDK before, you can read the following section:

import ZIM

func initWithAppID(_ appID: UInt32, appSign: String?) {
    let zimConfig: ZIMAppConfig = ZIMAppConfig()
    zimConfig.appID = appID
    zimConfig.appSign = appSign
    self.zim = ZIM.shared()
    if self.zim == nil {
        self.zim = ZIM.create(with: zimConfig)
    }
    self.zim?.setEventHandler(self)
}

Later on, we will provide you with detailed instructions on how to use the ZIM SDK to develop the co-hosting feature.

Manage multiple SDKs more easily

In most cases, you need to use multiple SDKs together. For example, in the live streaming scenario described in this doc, you need to use the zim sdk to implement the co-hosting feature, and then use the zego_express_engine sdk to implement the live streaming feature.

If your app has direct calls to SDKs everywhere, it can make the code difficult to manage and troubleshoot. To make your app code more organized, we recommend the following way to manage these SDKs:

class ZIMService: NSObject {

    // ...
    func initWithAppID(_ appID: UInt32, appSign: String?) {
        let zimConfig: ZIMAppConfig = ZIMAppConfig()
        zimConfig.appID = appID
        zimConfig.appSign = appSign ?? ""
        self.zim = ZIM.shared()
        if self.zim == nil {
            self.zim = ZIM.create(with: zimConfig)
        }
        self.zim?.setEventHandler(self)
    }
    // ...
}

class ExpressService: NSObject {

    // ...
    public func initWithAppID(appID: UInt32, appSign: String) {
        let profile = ZegoEngineProfile()
        profile.appID = appID
        profile.appSign = appSign
        profile.scenario = .broadcast
        ZegoExpressEngine.createEngine(with: profile, eventHandler: self)
    }
    // ...
}

class ZIMService: NSObject {

    // ...
    func connectUser(userID: String, userName: String, token: String?, callback: CommonCallback?) {
        let user = ZIMUserInfo()
        user.userID = userID
        user.userName = userName
        userInfo = user
        zim?.login(with: user, token: token ?? "") { error in
            callback?(Int64(error.code.rawValue), error.message)
        }
    }
}

class ZegoSDKManager: NSObject {

    static let shared = ZegoSDKManager()

    var expressService = ExpressService.shared
    var zimService = ZIMService.shared

    func initWithAppID(_ appID: UInt32, appSign: String) {
        expressService.initWithAppID(appID, appSign: appSign)
        zimService.initWithAppID(appID, appSign: appSign)
    }

}

Later, we will introduce how to add co-hosting feature based on this.

Send & Cancel a co-hosting request

The implementation of sending and canceling co-hosting requests is similar, with only the type of signal being different. Here, sending will be used as an example to explain the implementation of the demo.

In the Demo, a request co-host button has been placed in the lower right corner of the LivePage as seen from the audience perspective. When the button is clicked, the following actions will be executed.

1. Encode the JSON signal, where the room_request_type is defined as applyCoHost in the demo.

2. Call sendRoomRequest to send the signal. (sendRoomRequest simplifies the sendMessage interface of ZIM SDK.)

• If the method call is successful: the applying status of the local end (i.e. the audience) will be switched to applying for co-hosting, and the Request Co-host button will switch to Cancel CoHost.
• If the method call fails: an error message will be prompted. In actual app development, you should use a more user-friendly UI to prompt the failure of the co-hosting application.

@IBAction func coHostAction(_ sender: UIButton) {
        //...
        let requestType: RoomRequestType = sender.isSelected ? .applyCoHost : .cancelCoHostApply
        let commandDict: [String: AnyObject] = ["room_request_type": requestType.rawValue as AnyObject]
        if requestType == .applyCoHost {
            ZegoSDKManager.shared.zimService.sendRoomRequest(receiverID, extendedData: commandDict.jsonString) { code, message, messageID in
                //...
            }
        } else {
            let roomRequest: RoomRequest? = ZegoSDKManager.shared.zimService.roomRequestDict[mRoomRequest?.requestID ?? ""]
            guard let roomRequest = roomRequest else { return }
            ZegoSDKManager.shared.zimService.cancelRoomRequest(roomRequest) { code, message, messageID in
                //...
            }
        }
    }

3. Afterwards, the local end (audience end) will wait for the response from the host.

• If the host rejects the co-host request: the applying status of the local end will be switched to not applying.
• If the host accepts the co-host request: the co-hosting will start (see the co-hosting section for details on starting and ending co-hosting).

Accept & Reject the co-hosting request

1. In the demo, when the host receives a co-host request signal, a confirmation dialog box will pop up and wait for the host to choose to accept or reject.
2. After the host responds, a signal of acceptance or rejection will be sent. The related logic of sending signals will not be further described here.

The relevant code snippet is as follows, and the complete code can be found in ApplyCoHostListViewController.swift

func onInComingRoomRequestReceived(request: RoomRequest) {
    tableView.reloadData()
}

func onInComingRoomRequestCancelled(request: RoomRequest) {
    tableView.reloadData()
}

func agreeCoHostApply(request: RoomRequest) {
    let roomRequest: RoomRequest? = ZegoSDKManager.shared.zimService.roomRequestDict[request.requestID]
    guard let roomRequest = roomRequest else { return }
    ZegoSDKManager.shared.zimService.acceptRoomRequest(roomRequest) { code, message, messageID in
        //...
        self.tableView.reloadData()
    }
}

func disAgreeCoHostApply(request: RoomRequest) {
    let roomRequest: RoomRequest? = ZegoSDKManager.shared.zimService.roomRequestDict[request.requestID]
    guard let roomRequest = roomRequest else { return }
    ZegoSDKManager.shared.zimService.rejectRoomRequest(roomRequest) { code, message, messageID in
        //...
        self.tableView.reloadData()
    }
}

Start & End co-hosting

When the audience receives the signal that the host agrees to co-host, they can become a co-host and start co-host live streaming by calling related methods of zego_express_engine for previewing and publishing streams.

func addCoHost(_ streamID: String, _ userID: String, _ userName: String, isMySelf: Bool = false) {
    // ...

    let videoView = VideoView()
    videoView.update(userID, userName)
    coHostVideoViews.append(videoView)
    if isMySelf {
        ZegoSDKManager.shared.expressService.startPublishingStream(liveManager.getCoHostMainStreamID())
        ZegoSDKManager.shared.expressService.startPreview(videoView.renderView,viewMode: .aspectFill)
    } else {
        ZegoSDKManager.shared.expressService.startPlayingStream(videoView.renderView, streamID: streamID)
    }

    // ...
}

End co-hosting

After the audience ends co-hosting, they need to call relevant methods of zego_express_engine to stop previewing and publishing streams. The complete code can be found in the endCoHostAction. And the key code is as follows:

@IBAction func endCoHostAction(_ sender: UIButton) {
    let localUserID = ZegoSDKManager.shared.expressService.currentUser!.id
    ZegoSDKManager.shared.expressService.stopPublishLocalVideo()
    ZegoSDKManager.shared.expressService.stopPreview()
    coHostVideoViews.forEach( { $0.removeFromSuperview() } )
    coHostVideoViews = coHostVideoViews.filter({ $0.userID != localUserID })
    updateCoHostConstraints()
    coHostButton.isHidden = false
    endCoHostButton.isHidden = true

    flipButton.isHidden = true
    micButton.isHidden = true
    cameraButton.isHidden = true
    flipButtonConstraint.constant = 16;
}

Conclusion

Congratulations! Hereby you have completed the development of the co-hosting feature.

If you have any suggestions or comments, feel free to share them with us via Discord. We value your feedback.
