Publishing streams via CDN

---

Introduction

The ZEGO Express SDK provides the ability to publish streams to CDN (Content Delivery Network), including forwarding streams to CDN and direct publishing streams to CDN.

This ability enables users to receive and play the stream from the CDN via a playback URL using a browser or a third-party player.

For security, CDN authentication is enabled by default when publishing streams to CDN.

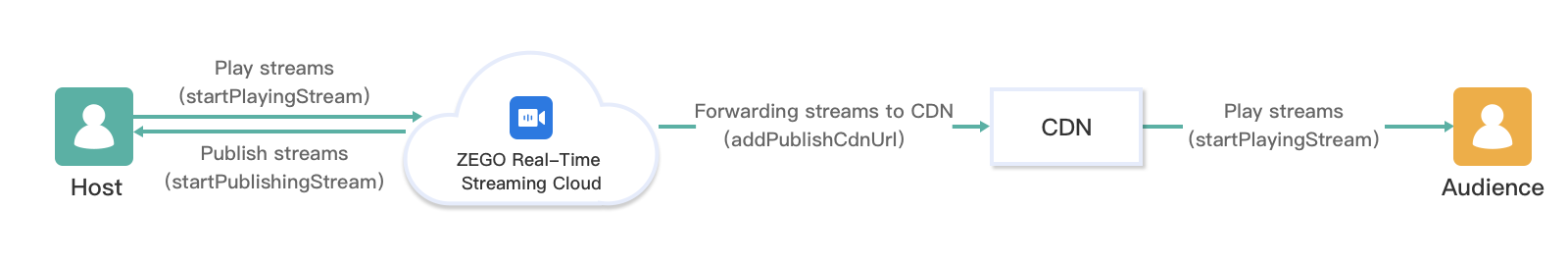

Forward a stream to the CDN

Forwarding streams to the CDN refers to forwarding streams from ZEGO's real-time streaming cloud to the ZEGO's CDN or third-party CDNs for large-scale distribution.

There are three methods for forwarding streams to the CDN:

• Forwarding streams to the ZEGO's CDN (Default)

This refers to forward streams from ZEGO's real-time streaming cloud to the ZEGO's CDN. To use this, contact the ZEGO team.

• Forwarding streams to the CDN

You can specify which CDN the streams to be forwarded to, the ZEGO's CDN, or third-party CDNs.

• Forwarding mixed streams to the CDN

You can also forward the mixed output streams to the ZEGO's CDN, or third-party CDNs. For details, see Stream mixing.

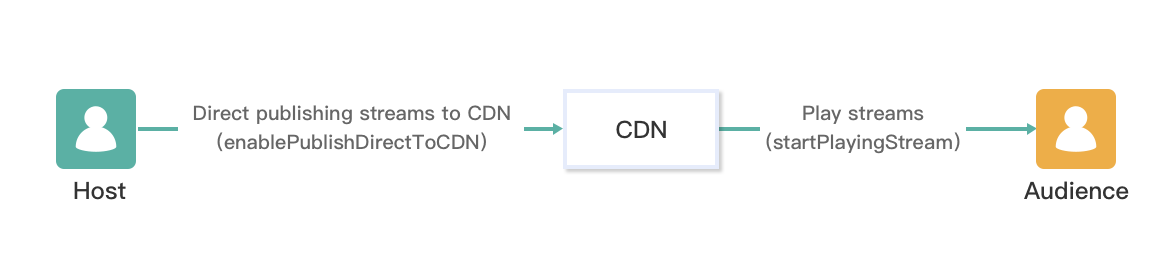

Direct publishing a stream to the CDN

Direct publishing streams to the CDN refers to the process of publishing audio and video streams directly from the client application to the designated CDN. Users can then play the streams directly from the CDN via a playback URL using a browser or a third-party player. However, as the streams are not transmitted over ZEGO's real-time streaming cloud, users will not be able to get the ultra-low latency streaming experience that ZEGO can provide with its optimized real-time network. The ZEGO's CDN or third-party CDN are supported.

Feature comparison

The following are the descriptions and scenarios of the two features:

Prerequisites

Before you begin, make sure you complete the following steps:

• A project has been created in ZEGOCLOUD Console and applied for a valid AppID and AppSign. For details, please refer to Console - How to view project information .
• ZEGO Express SDK has been integrated into the project to implement basic real-time audio and video functions. For details, please refer to Integrate the SDK and Implement a basic video call.

Forward a stream to the CDN

After you publish a stream to ZEGO's real-time streaming cloud successfully, to forward a stream to ZEGO's CDN or third-party CDN, call the addPublishCdnUrl method to start forwarding the stream to the specified CDN URL. RTMP streams are supported.

/** Start forwarding streams to the CDN after the stream publishing is successful. */

// The stream ID you used for stream publishing.
NSString *streamID = @"STREAM_ID";
// Starts forwarding a stream to the specified CDN URL, fill in the URL based on the actual situation.
NSString *URL = @"rtmp://xxxxxxxx";
[self.engine addPublishCDNURL:URL stream:streamID callback:^(int errorCode) {
    // Obtain the notification that whether the forwarding operation is successful.
    if(errorCode == 0) {
        // Forwarding successful.
    } else {
        // Failed to forward, bacause the request is not sent due to network problems.
    }
}];

Optional: Listen for the stream forwarding status update notifications

To listen for the stream forwarding status change notifications, refer to the Streaming info monitoring.

Stop forwarding the stream to the CDN

To stop forwarding the stream to the specified CDN URL, call the removePublishCdnUrl method.

// The stream ID you used for stream publishing.
NSString *streamID = @"STREAM_ID";
// Stops forwarding a stream to the specified CDN URL, fill in the URL based on the actual situation.
NSString *URL = @"rtmp://xxxxxxxx";
[self.engine removePublishCDNURL:URL stream:streamID callback:^(int errorCode) {
    // Obtain the notification that whether the stop forwarding operation is successful.
    if(errorCode == 0) {
        // Streams forwarding stopped successfully.
    } else {
        // Failed to stop forwarding streams to CDN, possibly because the request is not sent due to network error.
    }
}];

Direct publishing a stream to the CDN

To direct publish streams to the CDN, call the enablePublishDirectToCDN method.

ZegoCDNConfig *config = [[ZegoCDNConfig alloc] init];
// Fill in the URL based on the actual situation.
config.URL = @"rtmp://xxxxxxxx";
[self.engine enablePublishDirectToCDN:YES config:config];
[self.engine startPublishing:@"STREAM_ID"];

Stop direct publishing the stream to the CDN

To stop direct publishing streams to CDN, call the stopPublishingStream method.

After stream publishing to CDN stops, if you want to disable the direct publishing to CDN feature for the next time, do the following:

1. Call the enablePublishDirectToCDN method.
2. Pass the false value into the method.

• Calling this method during stream publishing does not affect the current stream publishing operation.

[[ZegoExpressEngine sharedEngine] stopPublishingStream];
ZegoCDNConfig *config = [[ZegoCDNConfig alloc] init];
[[ZegoExpressEngine sharedEngine] enablePublishDirectToCDN:NO config:config];
